簡介：

無菌無塵熱風干燥滅菌柜的設計要點是依據強制對流原理將熱空氣經快速循環，通過高效空氣過濾器達到等級100以內的高潔凈度。此熱空氣達到170℃~260℃時，將置于滅菌室內的瓶子、器具、鋁蓋、膠塞（低溫時）等完全滅菌以符合GMP標準。每臺滅菌柜在出廠前皆做完整測試，其報告結果將列于提供給客戶IQ及OQ資料中，同時各種儀表及溫度傳感器，皆提供原始標準文件記錄，以符合GMP標準。

Application:

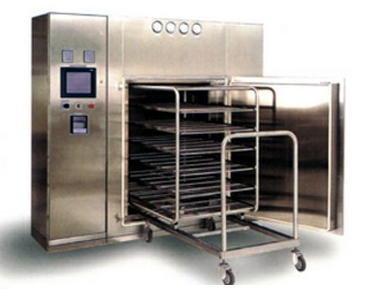

Hot air sterilizer machinery is designed according to forced convection principle with fast hot-air transmission circulation, and then through HEPA Fliter ensures the chamber air class within 100. Chamber inside the bottle, appliance, aluminum cover, rubber stoppers completed non germ when hot-air temperature up to 170℃~260℃ then reduce temperature, in accodance with the GMP regulations.Before the machine leaves the factory，it needs to finish whole testing and provide equipment IQ &OQ data manual, and all instruments calibrating report such as sheet document, contain varied kind of gauge and temperature sensor, provide original calibration document, in according with GMP requirment.

適用：

無菌無塵熱風干燥滅菌柜適用于制藥廠，生物科技，電子工業，化工業及食品過程等。主要應用于玻璃及金屬殺菌的去熱源反應，如瓶類、注射液瓶、及各種藥液瓶、鋁塞、膠塞等。

Application:

Hot air sterilizer machinery applies to pharmaceutical factory, biotechnology, electronic industry, chemical industry and food producing industry, etc. It mainly applies to heat removal reaction of glass and mental sterilization such as vialL, ampoule and all kinds of bottles, aluminum plug and plastic plug, etc.

特色：

品質可靠，產品符合GMP標準。 采用高溫過濾器，DOP測試達99.97%，耐高溫398.9℃，確保室內潔凈度在100等級之內。內部熱風經高效率過濾網過濾后，進入滅菌室，將瓶內熱源及細菌完全滅菌，細菌殘留量低于6LOG（10-6）下。 進氣及排氣口可依據需要選擇99.97%絕對過濾裝置。 設有DOP驗證口，使QA人員能測量箱內風壓及潔凈度。 設有溫度驗證口，使QA人員能測室內空載熱分布及滿載熱滲透FH/FP，可選擇附RS232界面與電腦連線監控。 滅菌柜于空載滅菌時間內，室內各點溫度分布情形確保在±5℃之內。 每個過濾器上設有一個差壓計檢測二側壓力情形及過濾器壽命。 在進排氣口有一擋板門，在不同的循環階段提供啟閉的完全控制。

Feature:

1. The quality is dependable, in according with GMP regulation.
2. Absolute high temperature and high efficiency HEPA Filter (DOP Test 99.97%), ensure the chamber air class within 100. Use hot air effect HEPA Filter to filter after enter chamber will complete sterilize bacteria, chamber inside bacteria quantity below 6 log (10-6).
3. Intake/ exhaust choice 99.97% filter device to use.
4. Charge DOP, particle counter test hole and validation testing holes are available for inspection.
5. Prepare a validation hole to make quality assurance people test the FP/ FH value of the chamber between the heating distribution and the heating penetration.
6. During sterilization process, the chamber empties every position temperature within ±5℃.
7. Every filter has one pressure guard check two-side the pressure and check filter life.
8. Intake/ exhaust has one stop-door can compete control every cycle open and close.

結構：

機器結構全部采用不銹鋼304、316L材質制造，完全符合GMP標準。 密封門使用環硅橡膠材料包裝,確保熱空氣無滲漏。 可調整進排氣擋板。 全機結構采用氬弧焊接，箱內可用水清洗。 單門式或雙門貫通式設計，皆可供應。 自動控制上設有二道超溫保護，以確保使用上安全， 以雙門關門的模式作為洗瓶室與無菌室的區隔。 洗凈瓶子由洗滌室置入后，滅菌完成后由無菌室取出。 門設有互鎖裝置，以避免不同等級空氣造成污染。 滅菌臺車采用不銹鋼制造，滅菌盤子可配合充填機使用。

Structure:

1. This machine is designed and fabricated by high quality technique. All construction materials are made of 316L stainless steel and comply with GMP standard.
2. Sealed door packing use ring silicone rubber material, ensure hot air no leakage.
3. Adjust type inter/ exhaust fender
4. Sealed interior chamber (argon welding) and stainless steel chamber permit washing the chamber
5. Single door or pass through type double door available
6. Auto controller has two over temperature protect to ensure operate safely
7. The sterilizer has two-door design that separates the sterilizer from the washing room and sterilized room
8. Bottles are to be loaded into the washing room and to be sterilized by the sterilizer and loaded out to sterilized room.
9. The door control use interlock device to aviod different air class causing contamination.
10. Sterilizer trolley uses stainless and sterilizer tray can harmonize with filling machine use.

控制系統：

高溫干燥滅菌柜系列，采用最先進智慧型人機界面及PLC程序自動控制，機器上附有LCD彩色觸摸屏，可設定及顯示各種不同資料，并可依觸摸屏指示操作機器，調整及設定簡單容易。 使用SCR動力控制，并配合溫度自動控制器采用P.I.D自動演算，將使溫度分布曲線值均勻穩定。 六點式溫度記錄器裝置，可完整記錄滅菌中各點溫度分布情形，可依體積大小另選購12點式溫度記錄器。 全自動滅菌循環包括加溫→干燥→滅菌→冷卻→完成五個階段。 冷卻未達到設定低溫點，門無法打開，防止高溫燙傷及瓶子破裂。 可選購壓力檢測裝置，確認滅菌柜內部壓力運轉中必須在正壓狀態，并可在記錄器顯示壓力值。

Control System:

Hot air sterilizer system uses human machine interface touch screen (LCD with color) and PLC sequence controller which are easy to operate and maintain, operation panel can set up several types of display information, according the screen to operate, adjust or install the machine. 1.Control system uses silicone control rectifier (scr) module, and coordinates with auto tunning temperature controller (P.I.D), to get very smooth and stable temperature curve during sterilization 2.By temperature recorder to record continuous curve of the chamber sterilization process, can choose 6 points or 12 points 3.Automatic sterilizer cycle includes heating→ drying→ sterilize→ cooling→ finish five stages 4.Prevent hot temperature and bottle break when cooling cycle not yet finishes and the door can’t be open 5.Purchase equipment to check chamber pressure during turning is under regular condition and recorder displays pressure value.

型號：

Module:
